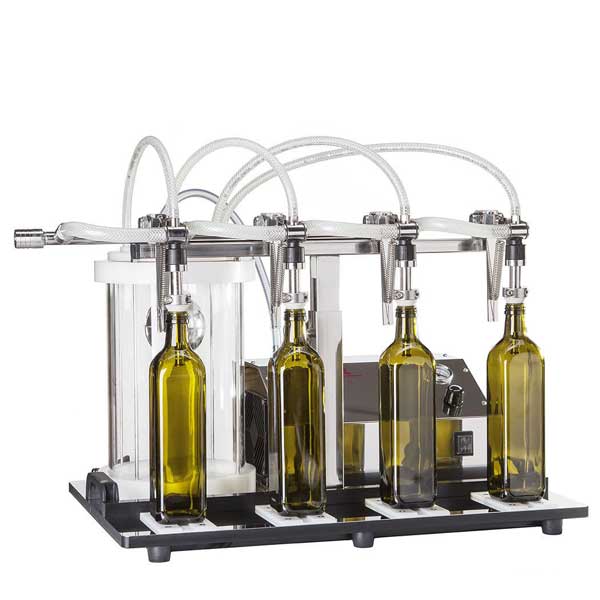

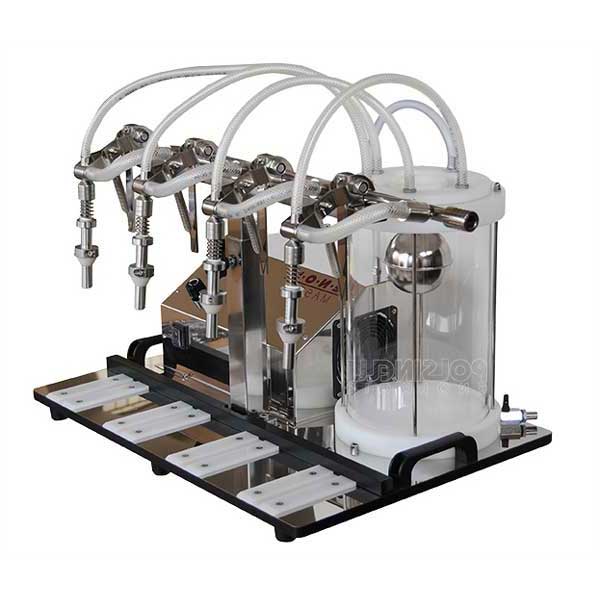

Enolmaster 4 Head Vacuum Bottle Filler - Olive Oil | Liquors | Balsamic Vinegar | High Viscosity

$3,449.99 & FREE SHIPPING details
SKU GF642-HV
  • Vacuum Filling--no contact between product and pump or mechanical components
  • 4 Stainless Steel Filling Nozzles
  • Fill level is adjustable
  • Source vessel can be up to 8 feet below the Enolmaster
  • 110 Volt
  • Weight 80 lbs (ships on skid at approx. 120 lbs)
  • 26"L x 19"H x 18"W
  • 480 bottles/hour
  • Also fills magnums (Enolmatic will not)
  • ~5' of 1" ID hose is provided

Enolmaster 4 Head Vacuum Bottle Filler for Olive Oil, Liquors, Balsamic Vinegar, High Viscosity and High Brix Products. Note: will work for wine but output would be reduced to about 400 bottles per hour.

Oil Version Heads: upper hose tail hole d.3 mmm – product inlet hose tail dd.10 mm. Nr 1 product outlet. Also suitable for: liquors, viscous fruit juices, syrups and generally speaking medium viscosity products, also with important sugar content (brix). The 3 mm hole on the upper hose tail allows to properly and quickly recover the viscous liquid in excess to the recovery vessel. If bottling balsamic vinegar, high brix or liqueurs you will also need the Enolmaster Motor Air Filter - White Mineral Oil Bath Air Filter our item number GF1022 to prevent damage to the vacuum motor.

Please note: this device is only meant for use with glass or rigid bottles, and due to the vacuum used for filling, cannot be used for plastic bottles.

Bottle Specifications

  • Neck Diameter: From 16 up to 28 mm (0.63 to 1.1 in)
  • Bottle Height: From 250 up to 330 mm (9.8 to 13 in)

Product Features

  • Vacuum powered bottle filler that can fill up to 480 bottles/hour! (Around 400 bottles/hour when doing wine.
  • 4 Stainless Steel Filling Nozzles will provide years of durable use.
  • Powered by a 110v motor.
  • Adjustable fill level.
  • Source vessel can be up to 8 feet below the Enolmaster.
  • Vacuum powered filling allows for no contact between product and pump or mechanical components.
  • Overflow bin is made of Pyrex, and the unit includes high-temp tubing so it can withstand alcohol levels above 20% ABV and liquid temperatures up to 230° F (110° C).
  • If bottling balsamic vinegar, high brix or liqueurs you will also need the Enolmaster Oil Batch Vacuum Motor Filter.
  • Made in Italy!

Product Specifications

  • Weight: 80 lbs. (cart weight will show more for rating purposes)
  • Power: 120v, 50/60 hz with standard plug.
  • Dimensions (Inches): 18.1 x 25.6 x 17.7 (L x W x H).
